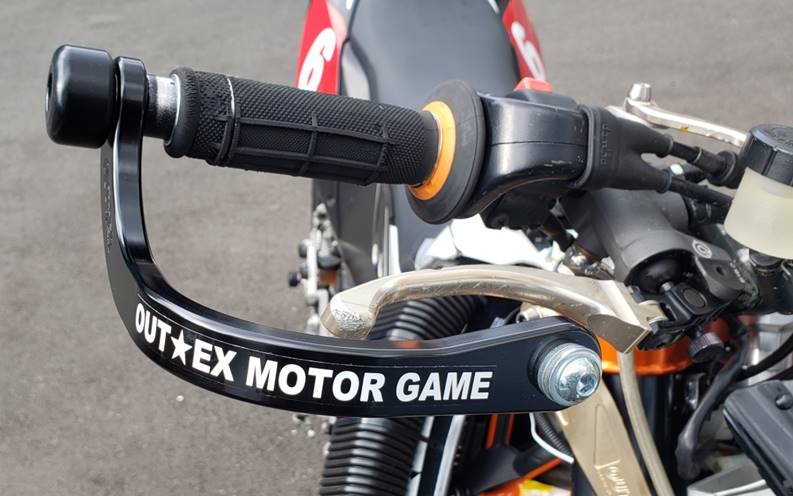

OUTEXLEVERGUARDsticker-(4)

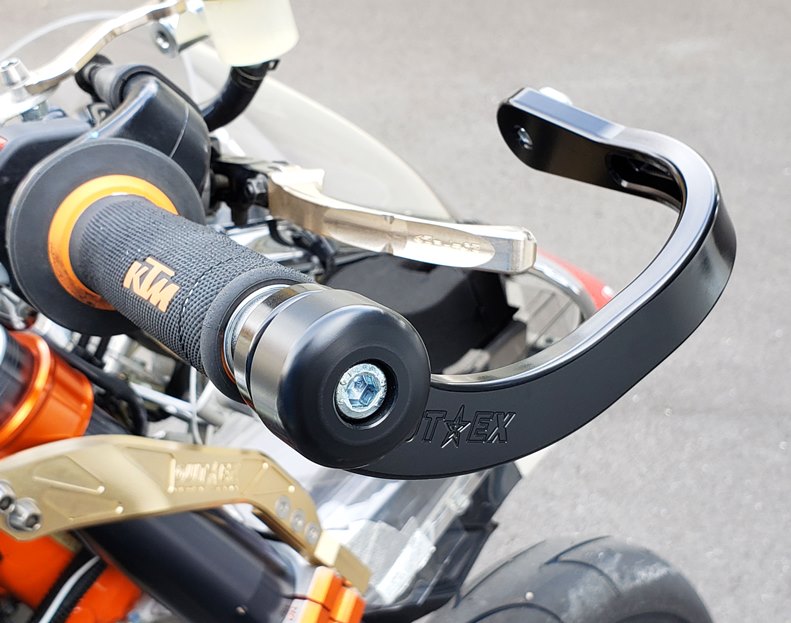

VALG-Z-10LBLACK690SMCRweb



.



20200911_134633WEB

OUTEX.VALG-Z10L-BLACK@160USD



@



Features of the VIBRATION ABSORBER LEVER GUARDS

š It is possible to move the vibration, common in the handle grips of single engine and twin engine models to the tip of the lever guards (weight adjustment of 56 grams including bolts is possible). Minimizing the vibration in the handles in this way helps to avoid tired arms and allows the rider to concentrate on riding during long rides or races. Naturally, this function is possible for both on-road and off-road motorcycles, as well as mini-bike, naked-bike, dual-sport, big-bike and so on.

š By securing the lever guard itself with a hexagon stainless adapter, it is possible to secure them better than to use the aluminum anchor type which is often used in commercially-sold hand guards. Removal can also be performed smoothly.

š Prevents contact with the brake lever of another rider on the track. (Installation was made mandatory from the MOTOGP 2012)

š A duracon slider has been equipped on the bar end to minimize damage to the lever guards and left/right levers in the event of a crash.

š Lever guards and duracon sliders are available for purchase separately as service parts.



VIBRATION ABSORBER LEVER GUARDS@VALG-Z series

Type

Part Number / Handle Inside Diameter List

Buffing

Black Anodized

Machining single piece type

thickness 10‡o

VALG-Z10-14

VALG-Z10-15

VALG-Z10-16

VALG-Z10-17

VALG-Z10-18

VALG-Z10-21

130 USD

140 USD

Machining single piece type

thickness 10‡o lightweight type

VALG-Z10L-14

VALG-Z10L-15

VALG-Z10L-16

VALG-Z10L-17

VALG-Z10L-18

VALG-Z10L-21

150 USD

160 USD

Machining single piece type

thickness 8‡o

VALG-Z8-14

VALG-Z8-15

VALG-Z8-16

VALG-Z8-17

VALG-Z8-18

VALG-Z8-21

120 USD

130 USD

Machining single piece type

thickness 8‡o lightweight type

VALG-Z8L-14

VALG-Z8L-15

VALG-Z8L-16

VALG-Z8L-17

VALG-Z8L-18

VALG-Z8L-21

140 USD

150 USD

Handle Inside Diameter

Size Range

13.7`14.7mm

15`16mm

16`16.9mm

16.2`18.6mm

17.3`20.2mm

19.5`22.5mm

Specifies the color

extra charges

10 USD

Please check your handle inside diameter.





Product Contents

Quantity

1.      Lever guards (Anodized Aluminum Right and Left)

1

2.      Duracon Sliders

2

3.      Hexagon Stainless Adapter

2

4.      Toothed Lock Washers

4

5.      Hexagon Socket Head Cap bolt M8~60LA13mm WasherASpring Washer Set

2

6.      Button bolt M8~30L

2

7.      Weight of 4g for the Vibration Adjustment

4

8.      Inner collar7mm

2

9.      Washers 20mm

2

10.   OUTEX Sticker Sets (Round type~1/Rectangular type~1/Long rectangular type~2)

OUTEXLONGstickerWEB

1

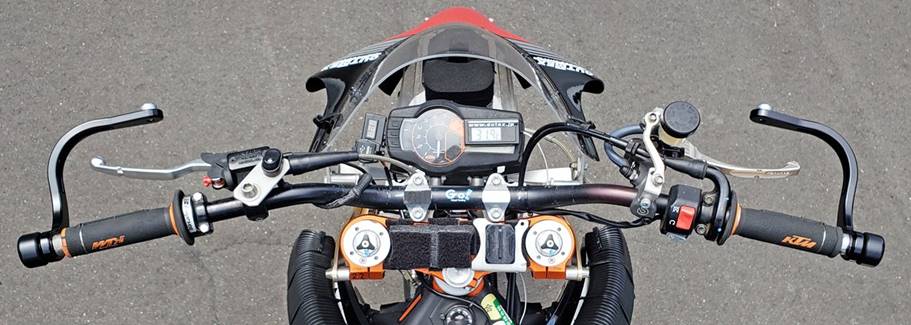

VALG-X1-10L690SMCR4WEB



VALG-Z-10LproductsUP5web







Line up

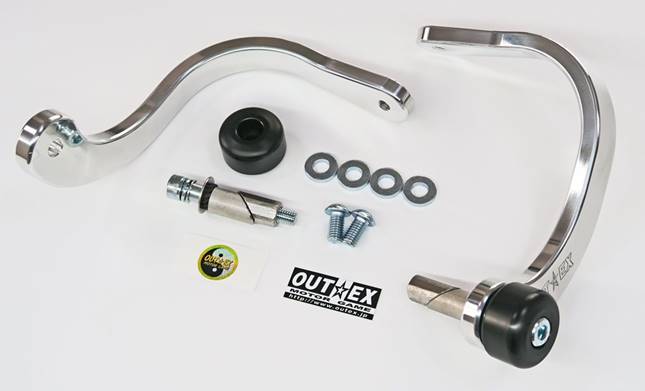

VALG-Z-10-productsWEB

Machining single piece type thickness 10mm Buffing



OUTEX.VALG-Z10@130USD

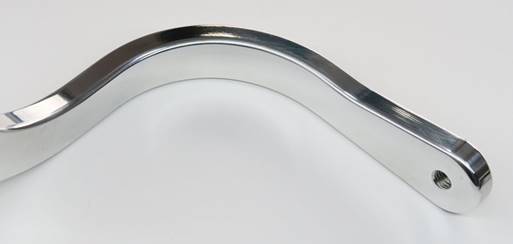

VALG-Z-10-productsUPweb

Weight of lever guard single side body 159g



------------------------------------------------------------------------------



VALG-Z-10-BLACKproductsWEB

Machining single piece type thickness 10mm Black anodized



OUTEX.VALG-Z10 Black@140USD





VALG-Z-10LproductsWEB

Machining single piece type thickness 10mm Lightweight type Buffing



OUTEX.VALG-Z10L@150USD

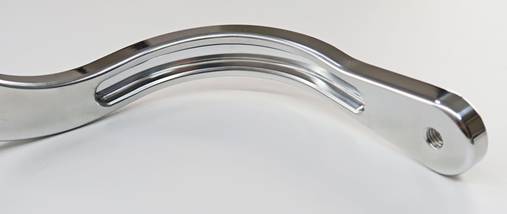

VALG-Z-10LproductsUP.webjpg

Weight of lever guard single side body 138g



------------------------------------------------------------------------------

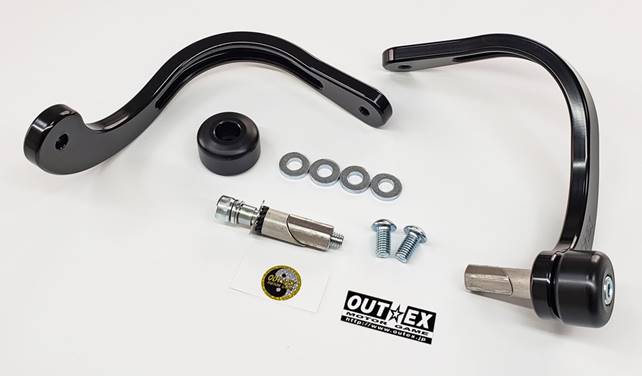

VALG-Z-10L-BLACK-productsWEB

Machining single piece type thickness 10mm Lightweight type Black anodized



OUTEX.VALG-Z10L-BLACK@@160USD

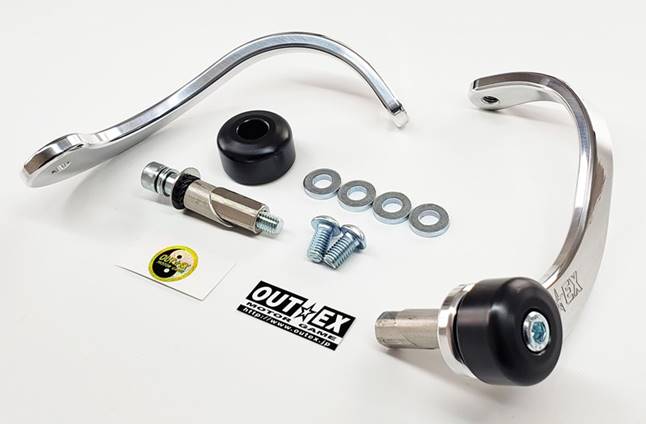

VALG-Z-8-productsWEB

Machining single piece type thickness 8mm Buffing



OUTEX.VALG-Z8@120USD





VALG-Z-8-productsUPWEB

Weight of lever guard single side body 90g





VALG-Z-8L-productsWEB

Machining single piece type thickness 8mm Lightweight type Buffing



OUTEX.VALG-Z8L@140USD

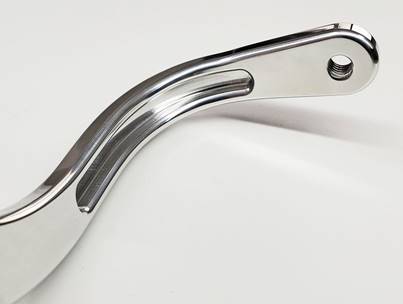

VALG-Z-8L-productsUP2WEB

Weight of lever guard single side body 82g



------------------------------------------------------------------------------

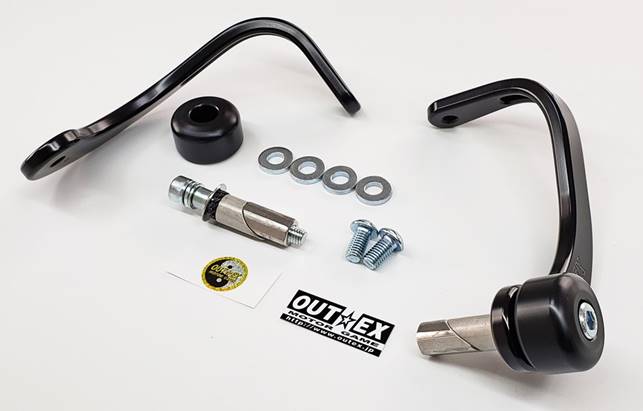

VALG-Z-8L-BLACK-productsWEB

Machining single piece type thickness 8mm Lightweight type Black anodized



OUTEX.VALG-Z8L Black@150USD

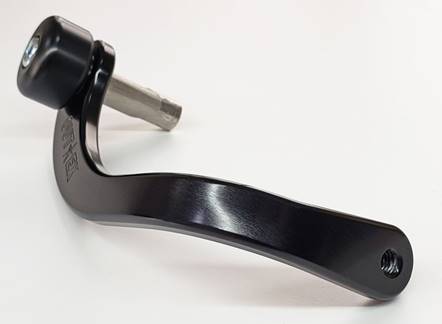

VALG-Z-8L-BLACK-productsCweb

.

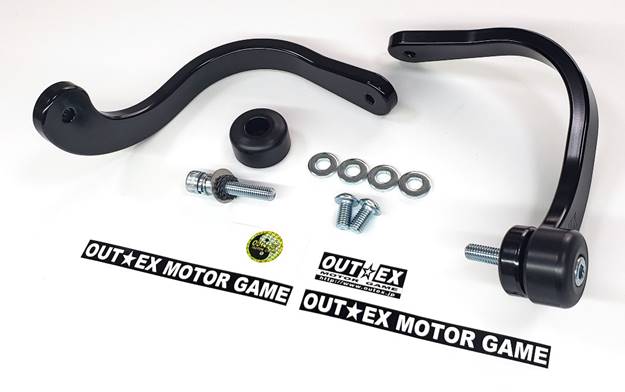

VALG-Z-10-M8productsWEB



Machining single piece type thickness 10mm M8 Bolts Black anodized

This item are fastened to the bar ends of handle bars using M8 Bolts directly without Hexagon Stainless Adapters. This item is for handle bars that bolts are tighten to bar ends.



VALG-Z10-M8-BLACK 120USD

.

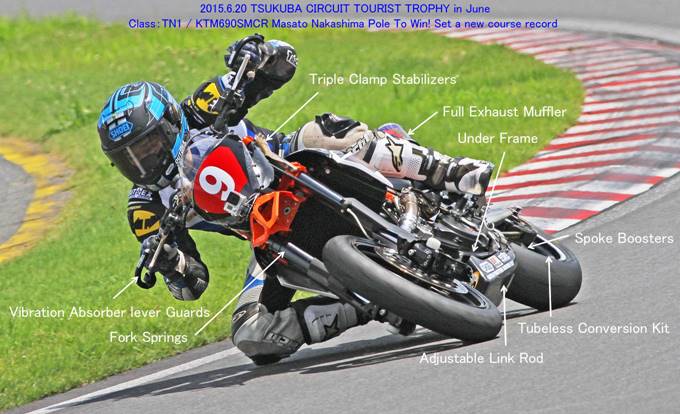

2015.6.20TSUKUBATN1-LEVERGU

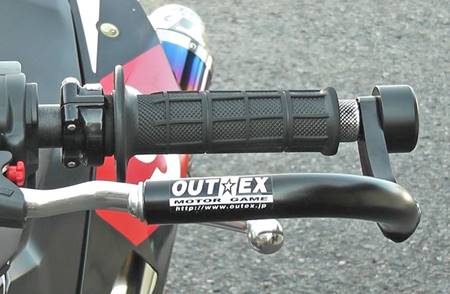

LEVER-GUARD-vibrationWEB

LEVER-GUARD-vibration2WEB

The state that the tip of the lever guard vibrates



. .

. .

. .







Examples of fitting

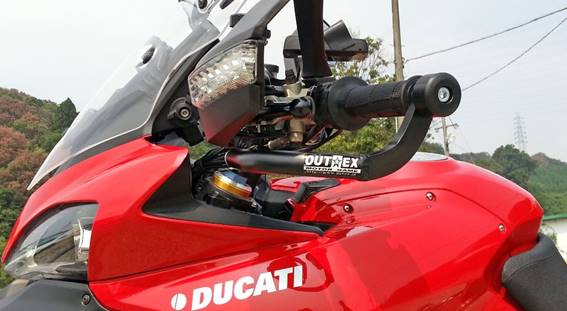

Ducati-Multistrada

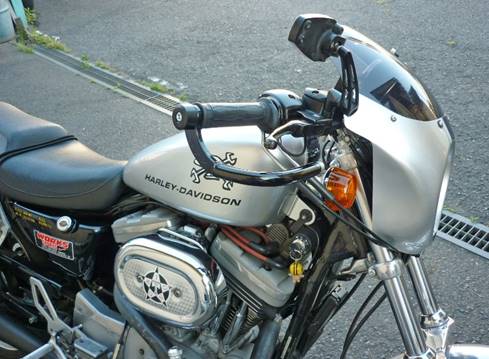

P1160295S

HARLEY-DAVIDSON XL1200S

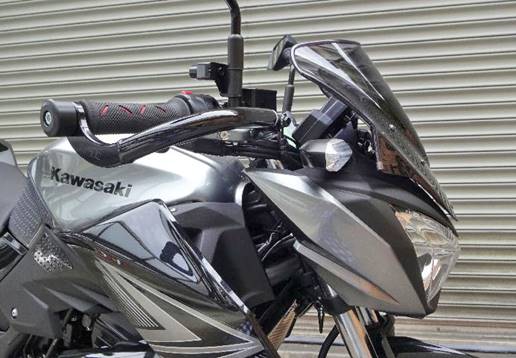

Z250_ABS-03

Z250 ABS

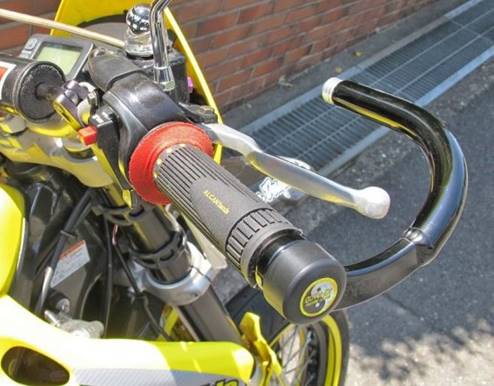

IMG_0375--S

250SB



MUTOUweb

WR250X



We are pleased to have our customersfcomments.



Lever Guards / OUTEX VALG -X

Hello,

I am Dennis from Hong Kong.

I bought the Outex Lever Guards from eBay and using it for two months.

Here is the review for the nicely made product.


1. Installing the item

With the nuts and bolts Outex provided, the Lever Guards nicely attached to my oshiro handlebar.

Very Easy...



2. Your feeling when riding your motorcycle installed the item on.

The Vibration is reduced after installed this Lever Guards. Can feel it especially when in lower gears and stuck at the traffic jam. Comfortable for long time riding.

Safety when I have a close call. It give much protection to my hands when I need a close call.


3. The reason of buying this item

It is a nicely design, good looking, good quality product that provided me more protection and comfortable when riding.


4. The five grade rating

5 stars ššššš

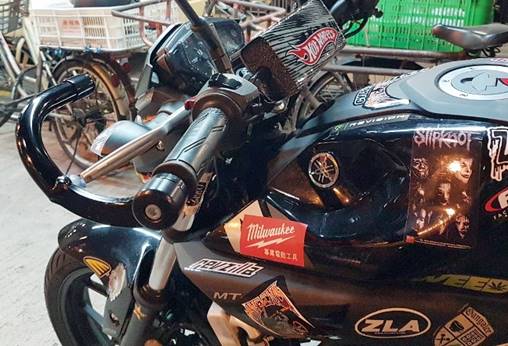

20170423_004646c







Lever Guard / Brake Clutch VIBRATION ABSORBER Lever Guards / OUTEX VALG -X

Absolutely fantastic and unique product: lever guards, bar end sliders and bar weights all in one.

Rugged, well made, with a significant reduction in vibration. Shipping (to Canada from Japan) was lightening fast with great communication.

Would buy this product again and will certainly buy more from OutEx.

Carl - Calgary, Alberta, Canada.

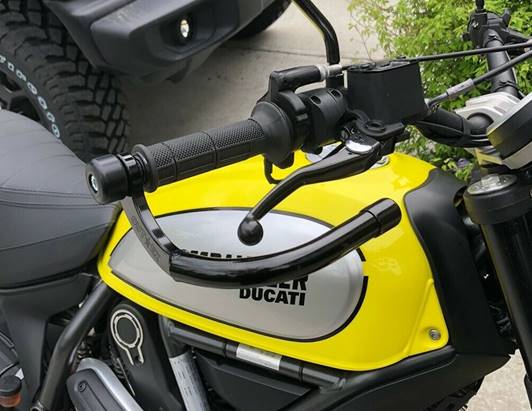

s-l1600



Product Reviews

OUTEX.VALG

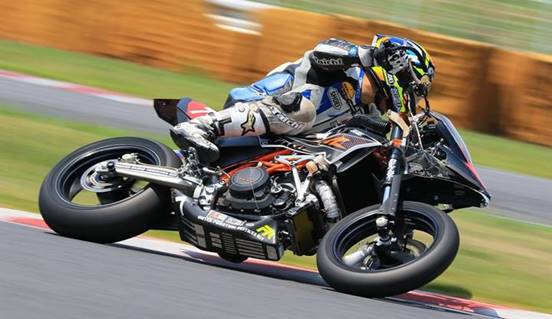

28524554TSUKUBA-RR-R3-8.4-Ns
