↓Images↓

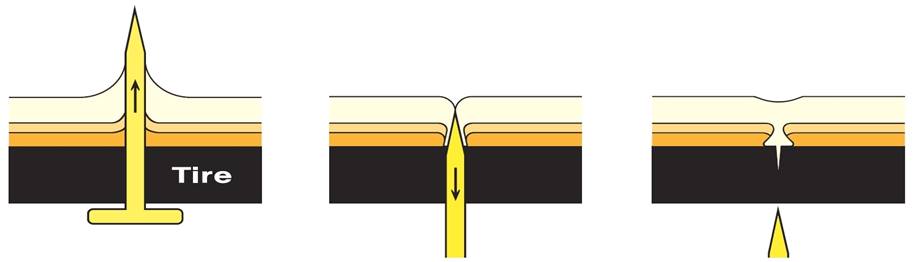

(1)　Puncture defense membrane

(2)　Penetration of tyre and defense membrane by foreign object

(3) The combination of air pressure and the form-filling elasticity of defense membrane ensures an airtight seal of puncture location

《Special three-layer structure》

Puncture simulated in tire with gimlet and subjected to test run

This is where the gimlet penetrated tire and defense membrane.	No cavity or hole visible. Membrane has reformed, filling the opening left by foreign object and preventing leakage

Unique features of Puncture defense kit

●Where the puncture defense sheet has been applied, due to its malleability, it will reform to stop air leakage from puncture location of tyre when a foreign object penetrates and also after the offending item has been removed.

●Puncture repair unnecessary

●No negative effect on riding feel. (Rigorously tested on circuit with conclusive results)

●Ensures puncture free, uninterrupted, mobility on any surface.

●Especially advantageous when evacuating during an emergency or disaster.

●Absolutely essential for bike messengers/couriers and anyone doing long distance riding.

Don’t let your ride get interrupted by a puncture. Get the puncture defense kit and be confident you’ll reach your goal.

JUST KEEP RIDING !

Q&A

. .

. .

. .

. .

. .

. .

Product name: Outex Puncture Defense Kit

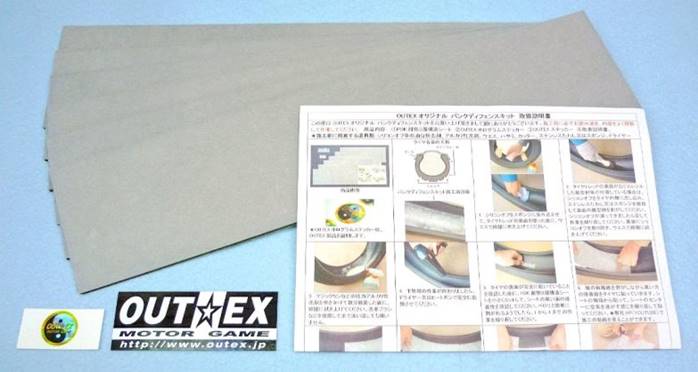

Contents：　PDK three-layer structure sheet, Outex sticker, Installation manual.

Installation requires some basic mechanical skill. (following are needed for proper installation: Silicon off(such as de-greaser), rag for wiping, scissors, cutter, stainless scourer, hair dryer)

Specification and price are subject to change without prior notice, due to improvements/decision to use higher specification/quality materials. (Patent pending)

Price sheet
Tire width	PDK 3 layered sheet　 Basic size Width×Length	Parts number	350mm×1	Parts number	350mm×4 （Total 1400mm） Tire outer diameter Less than 445mm 10〜12 inches	Parts number	350mm×5 （Total 1750mm） Tire outer diameter Less than 557mm 12〜14 inches	Parts number	350mm×6 （Total 2100mm） Tire outer diameter Less than 668mm 14〜18 inches	Parts number	350mm×7 （Total 2450mm） Tire outer diameter Less than 780mm 18〜21 inches
for sides	20×350	PDK20	US$4.00	PDK204	US$17.00	PDK205	US$20.00	PDK206	US$23.00	PDK207	US$26.00
for sides	30×350	PDK30	US$6.00	PDK304	US$23.00	PDK305	US$29.00	PDK306	US$34.00	PDK307	US$40.00
80	40×350	PDK40	US$8.00	PDK404	US$31.00	PDK405	US$38.00	PDK406	US$45.00	PDK407	US$52.00
90	50×350	PDK50	US$10.00	PDK504	US$38.00	PDK505	US$47.00	PDK506	US$56.00	PDK507	US$66.00
100	60×350	PDK60	US$12.00	PDK604	US$45.00	PDK605	US$56.00	PDK606	US$67.00	PDK607	US$79.00
110	70×350	PDK70	US$14.00	PDK704	US$52.00	PDK705	US$65.00	PDK706	US$78.00	PDK707	US$92.00
120	80×350	PDK80	US$16.00	PDK804	US$60.00	PDK805	US$75.00	PDK806	US$89.00	PDK807	US$105.00
130	90×350	PDK90	US$18.00	PDK904	US$67.00	PDK905	US$84.00	PDK906	US$100.00	PDK907	US$118.00
140	100×350	PDK100	US$20.00	PDK1004	US$75.00	PDK1005	US$94.00	PDK1006	US$112.00	PDK1007	US$131.00
150	110×350	PDK110	US$22.00	PDK1104	US$82.00	PDK1105	US$103.00	PDK1106	US$123.00	PDK1107	US$144.00
160/170	120×350	PDK120	US$24.00	PDK1204	US$90.00	PDK1205	US$112.00	PDK1206	US$134.00	PDK1207	US$157.00
180	130×350	PDK130	US$26.00	PDK1304	US$97.00	PDK1305	US$121.00	PDK1306	US$145.00	PDK1307	US$170.00
190	140×350	PDK140	US$28.00	PDK1404	US$104.00	PDK1405	US$130.00	PDK1406	US$156.00	PDK1407	US$183.00
200	150×350	PDK150	US$30.00	PDK1504	US$112.00	PDK1505	US$140.00	PDK1506	US$167.00	PDK1507	US$196.00

The view of the price list:

In the case of the tire size 150/17 inch; the part number is PDK1106 and the price is 123 USD.

Please contact us for other sizes.

　

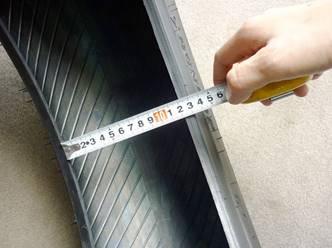

★Please measure the distance between inner beads and circumference of the tire before contacting us.

For example: if the distance between inner beads is 115 to 120mm, suitable tape size is 120mm.

★There is also the option of increasing covered/protected surface area using extensions on both sides of the original defense membrane, should you feel it necessary for the conditions you will be enduring on your rides.

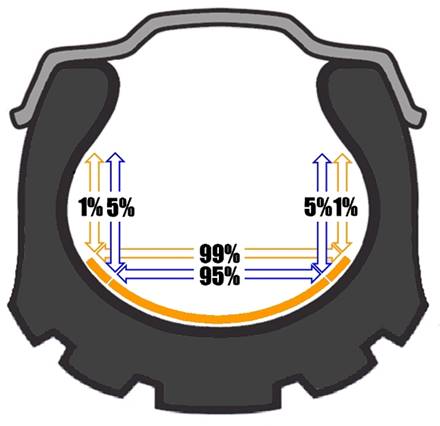

Probability of location where a foreign object could puncture tire.

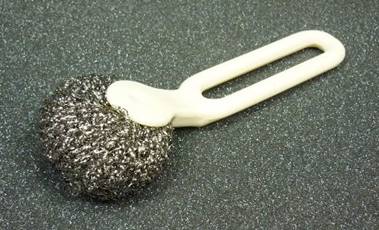

Stainless scourer 6 USD ★Depending on tire manufacturer, inner wall of the tire may need to be scrubbed in order to securely install the three-layer structure sheet.

Silicon off (250cc) 12 USD

PDK FAQ

Q:1 Is installation easy?

A:1 No special technique is required so long as the installation manual is well read and followed.

Q:2 What preparation required on the inner side where the PDK 3 layered sheet should be laid.

A:2 Basically, apply Silicon-off with wiping rag. Depending on the tire manufacturer, the inner tire might have white powdery surface used in their production process. This needs to be scrubbed off evenly with stainless scourer and Silicon-off or with alkaline detergent thoroughly in order to secure the installation of the PDK 3 layered sheet.

Q:3 Should the sharp object be pulled off?

A:3 If the object seems easy to be pulled off, please do so with plier. Depending on the damage, small amount of air might leak, but the air pressure from the tire and PDK 3 layered sheet will effectively work together to seal even tiny puncture.

Q:4 Up to what size of sharp objective can be stuck on a treated tire?

A:4 We have confirmed no air leakage after we stuck/pulled 8mm diameter driver on/off the tire.

Q:5 How about the durability?

A:5 In addition to the weather-proof and wear-off-proof characteristics of the material, having it inside the tire makes it more durable against ultra-violet and tough weather. The PDK 3 layered sheet being installed on tire has proven its adhesiveness in our circuit test run under excessive heat in a mid-Summer.

Q:6 Leave it as it is even after punctured? Will the liquid to seal the hole be solid?

A:6 If the air does not leak, it is not a puncture. So, leave it as it is. The material is not in a liquid form, but is an adhesive tape. Thus, it will not be solid inside or outside of the tire.

Q:7 Will the kit influence the handling of the bike?

A:7 No. Unlike other liquid type puncture proof products, PDK is very light and stable to the tire inner surface, and very flexible, we found no negative influence to the handling of the bike. (confirmed by the professional rider on the circuit test run.)

Q:8 Any problem if sharp object sticks on the place where puncture PDK 3 layered sheet overlaps at the both end of the sheet?

A:8 According to the test, sticking a gimlet on the place did not result in any air leak.

Q:9 Would PDK 3 layered sheet be peeled off during riding?

A:9 PDK 3 layered sheet applied on surface treated area in accord to the installation manual will further adhere to the tire with the air pressure and will not be peeled off.

We are now looking for distributors and sales agents who are interested in dealing with our products.

Enquiries in English by email please.
